Qualification Workspace & Profile Tuning Suite Integration – Qualification

Introduction

Qualification testing is easier with the integration between Qualification Workspace and Bluetooth® Profile Tuning Suite (PTS). Users can launch testing from their Qualification Workspace draft, complete the required tests in PTS, and have the results and test reports automatically synchronized back to the draft.

By reducing manual downloads, spreadsheets, and duplicate data entry, this integration improves accuracy, reduces effort, provides a clearer view of qualification progress, and enables a more connected, efficient end-to-end qualification experience. The steps that follow show you how to get started using the feature.

Before you start

Install the latest version of PTS. Download it from the Bluetooth PTS download page.
Have an in-progress draft available in Qualification Workspace.

Steps to sync PTS results with Qualification Workspace

Step 1. Install the latest version of PTS

Download and install the latest version of PTS from the Bluetooth PTS download page.

Step 2. Create a new workspace in PTS

When creating a new workspace, in the Name/Import step, select the Import From Qualification Workspace radio button and select Next.

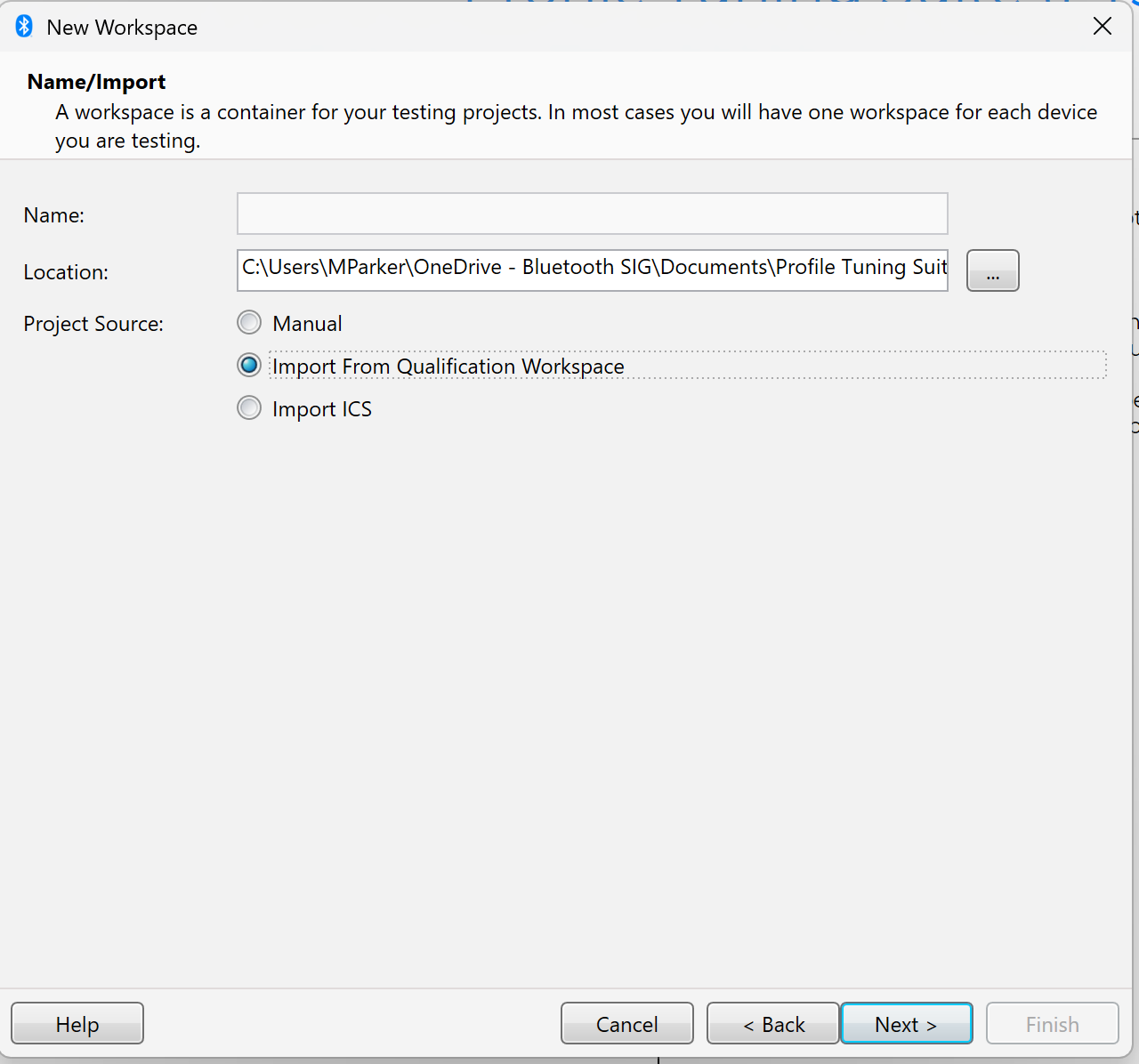

PTS New Workspace dialog with the Import From Qualification Workspace option selected in the Name/Import step. — The PTS New Workspace dialog with Import From Qualification Workspace selected.

Step 3. Select your Qualification Workspace draft

In the Project Selection step, PTS communicates with Qualification Workspace and presents a list of your in-progress drafts. Select the draft you want to use and select Next.

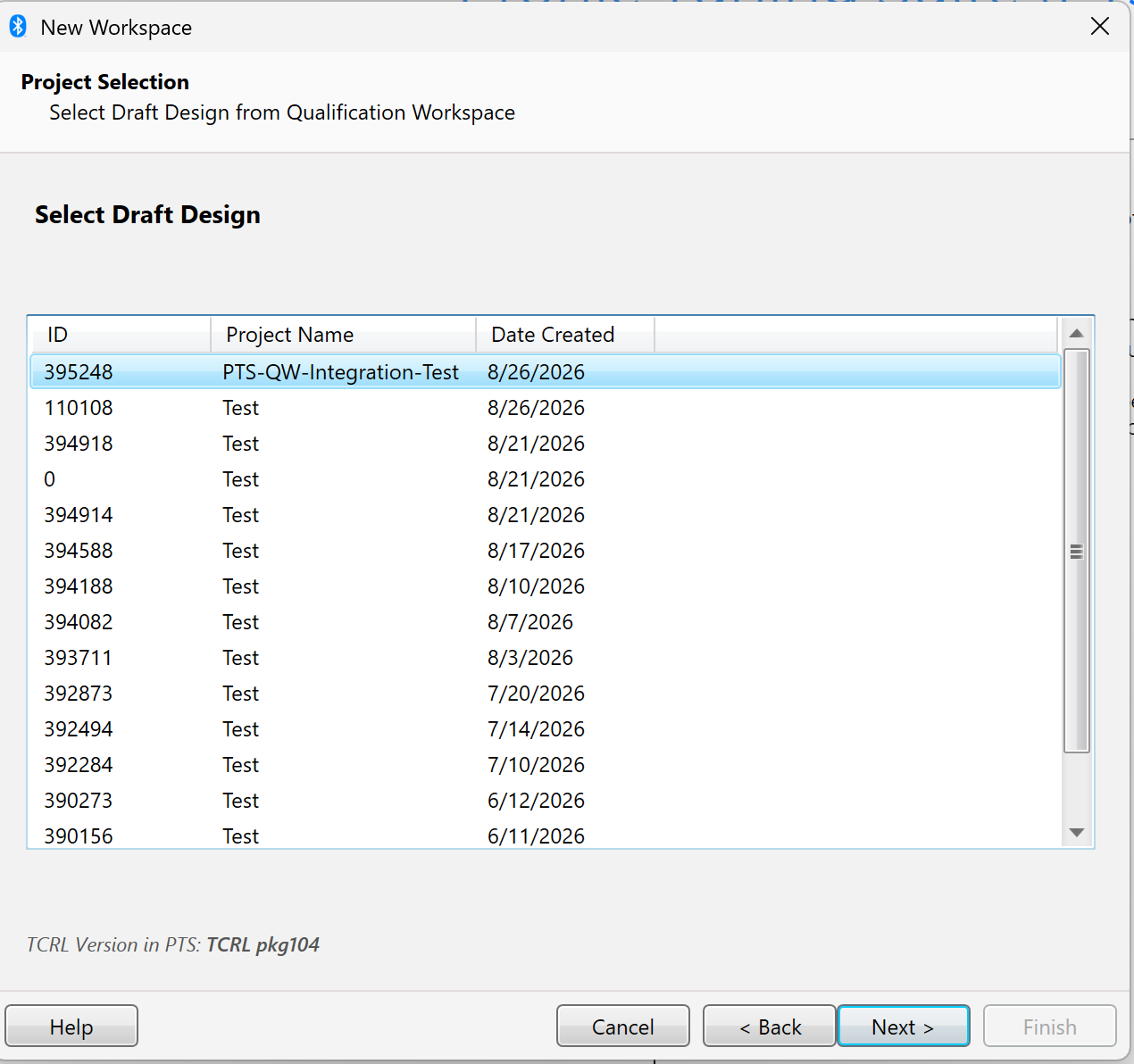

PTS Project Selection step showing a list of in-progress Qualification Workspace drafts to choose from. — The PTS Project Selection step listing in-progress Qualification Workspace drafts.

Step 4. Confirm the test suites

On the Test Suites step, PTS populates the required test suites based on the layers and ICS of your Qualification Workspace draft. Review the populated test suites, then select Finish. No manual test suite selection is required at this step. PTS then syncs the ICS selections and test information from Qualification Workspace.

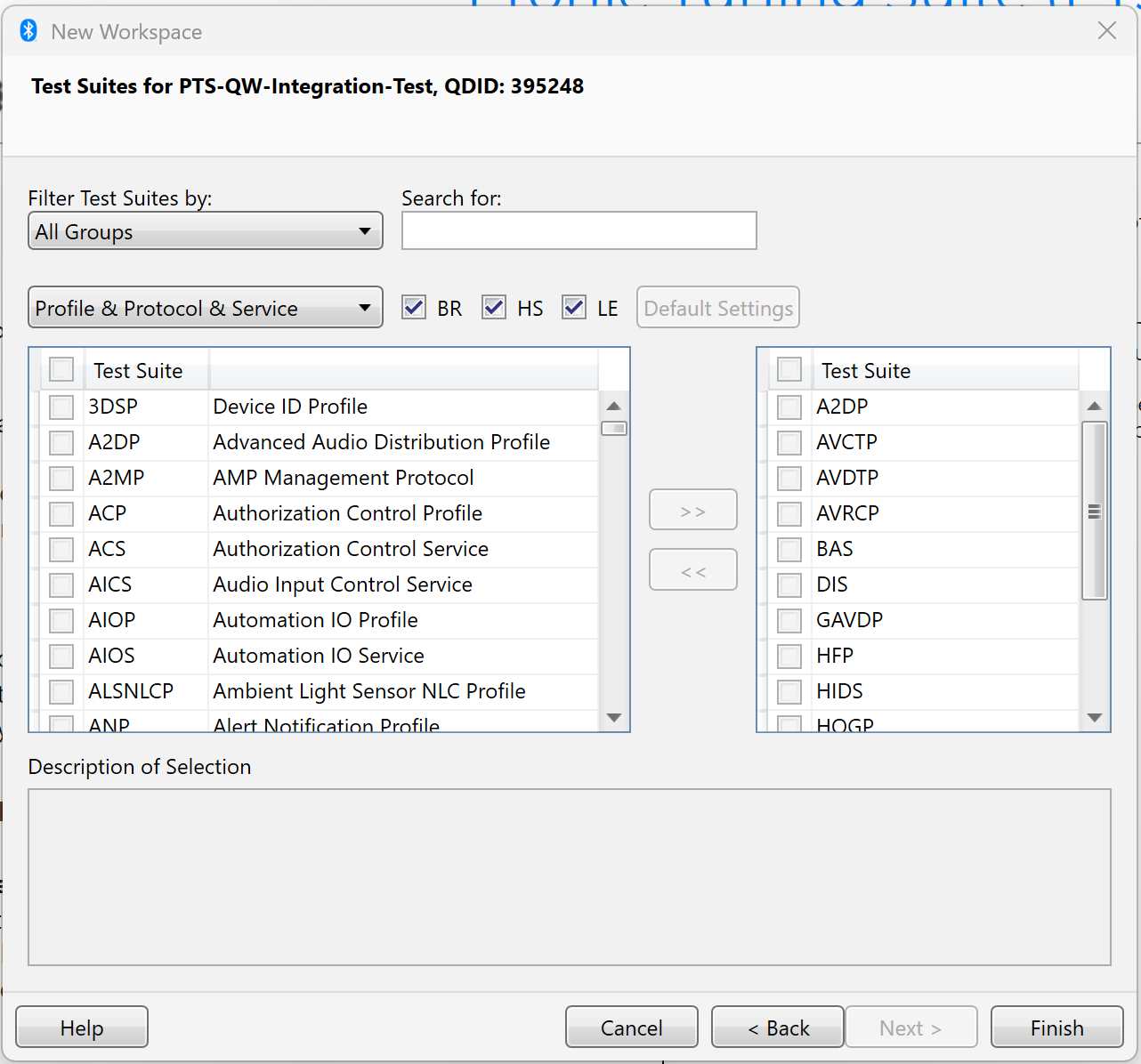

PTS Test Suites step displaying the required test suites populated from the Qualification Workspace draft. — The PTS Test Suites step with required test suites populated from the draft.

Step 5. Complete testing and upload results

Complete one or more test cases as you normally would in previous PTS versions. For more details on PTS testing, see the Profile Tuning Suite knowledge base (opens in a new tab).

Once you have completed one or more tests, upload the test results and reports to Qualification Workspace. On the top menu bar, select the Sync to Qualification Workspace button.

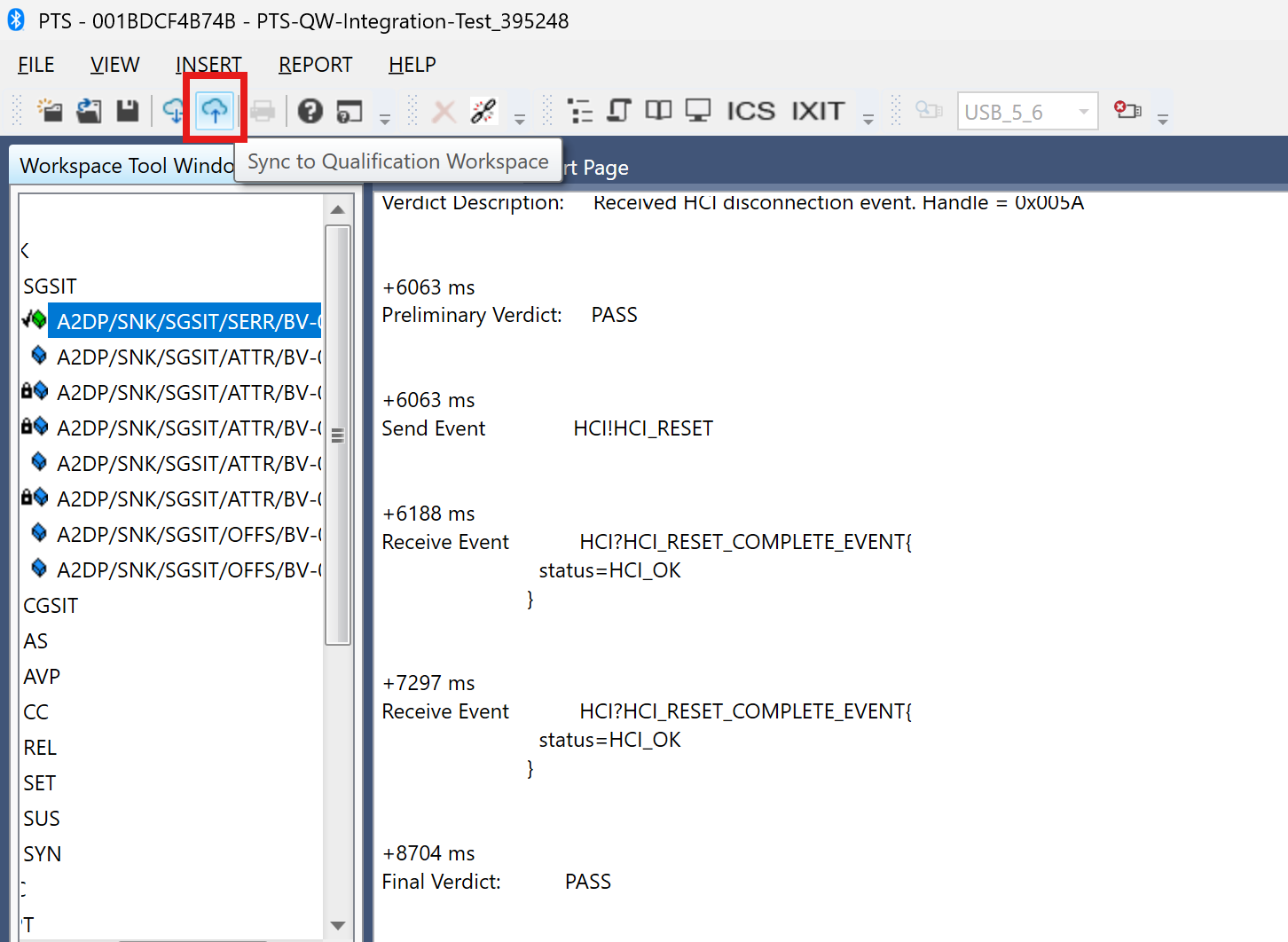

PTS top menu bar highlighting the Sync to Qualification Workspace button. — The Sync to Qualification Workspace button on the PTS top menu bar.

In the Sync to Qualification Workspace window, select the test results to upload, select the Attach test reports checkbox to also upload the test reports, and select Upload Results.

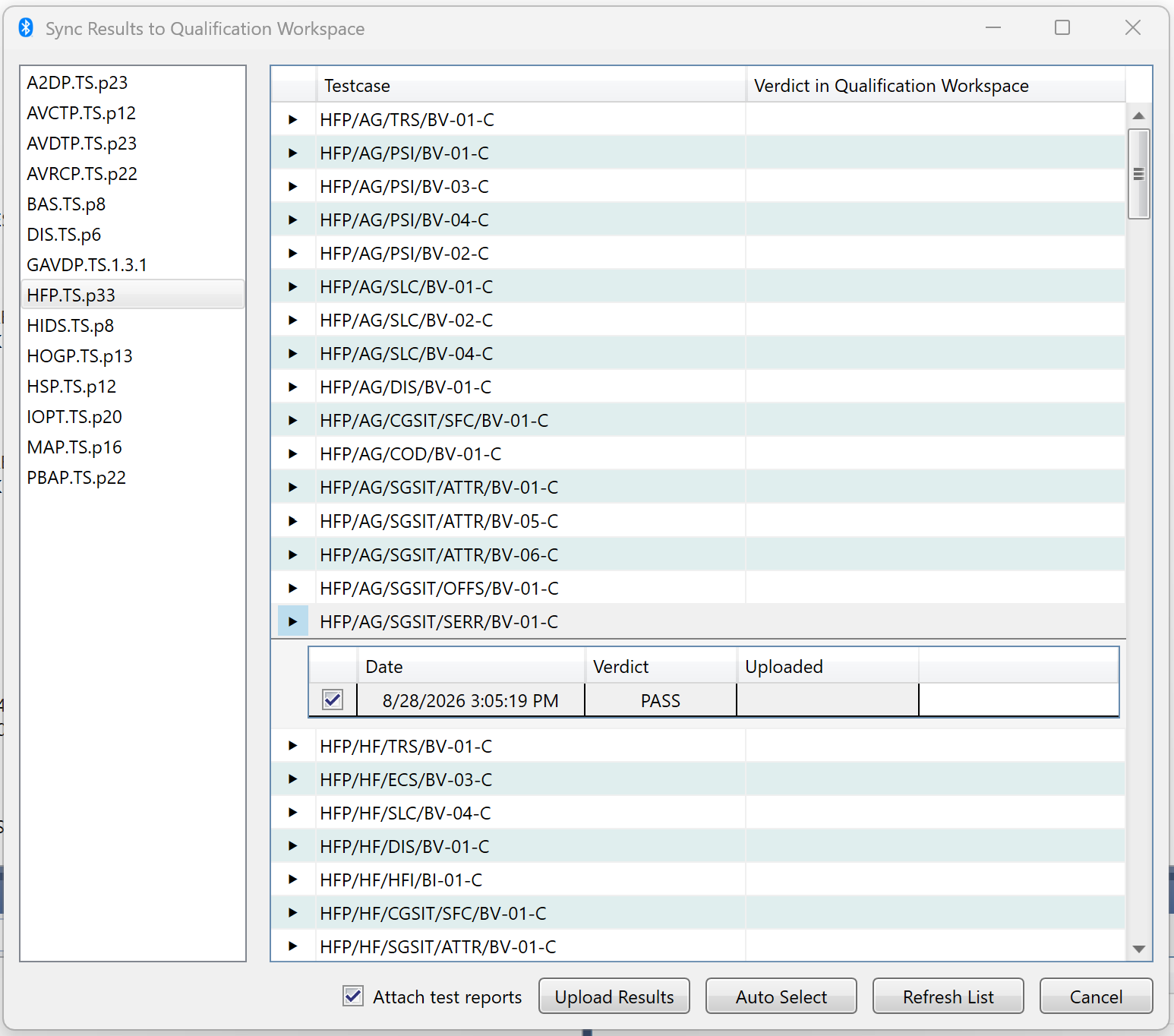

Sync to Qualification Workspace window with test results selected and the Attach Test Reports checkbox enabled. — The Sync to Qualification Workspace window with results and the Attach test reports checkbox selected.

PTS then confirms that the test results and reports have been uploaded to Qualification Workspace.

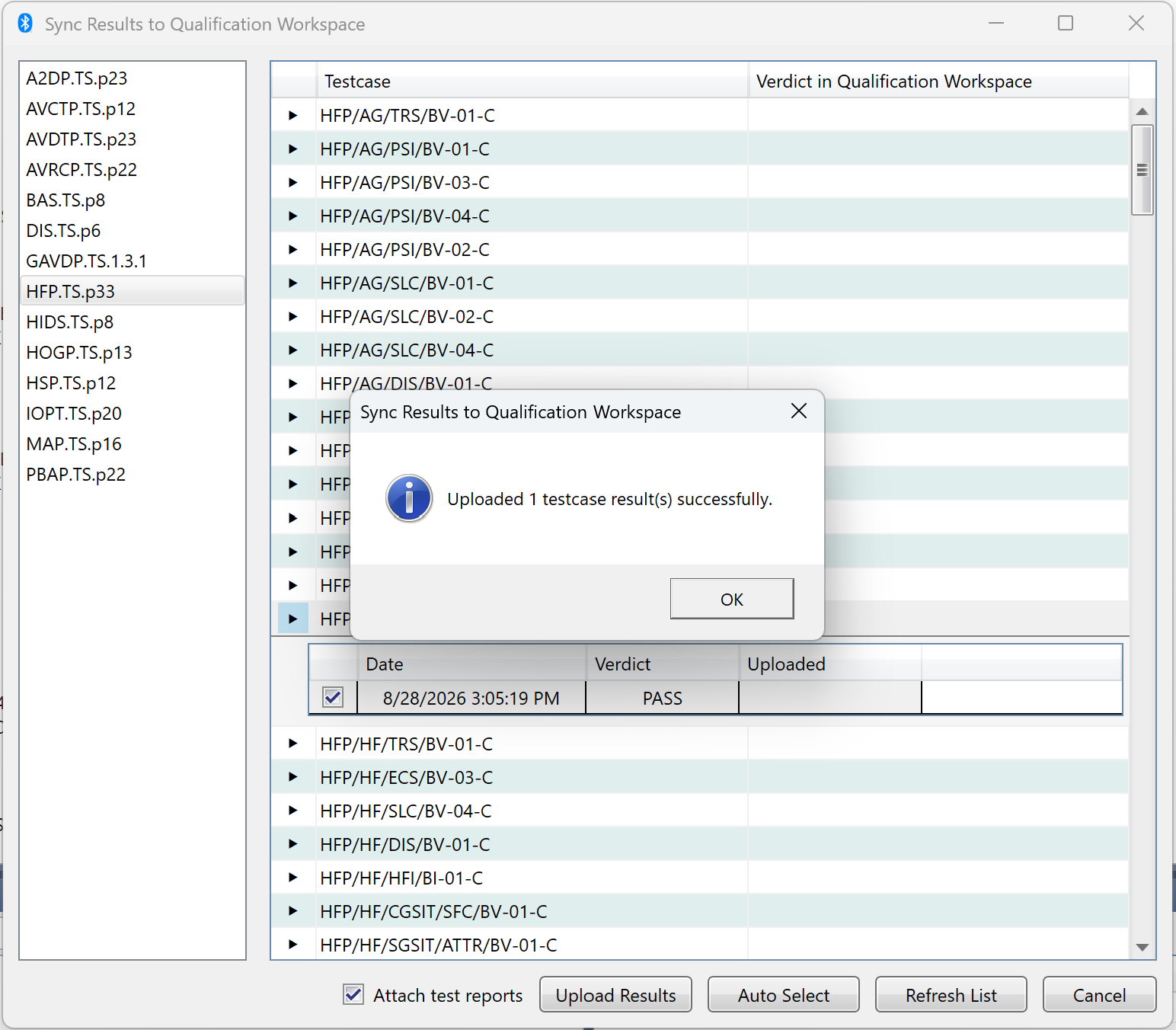

PTS confirmation message that test results and report were successfully uploaded to Qualification Workspace. — The PTS confirmation that results and reports uploaded successfully.

The Sync Results to Qualification Workspace view now shows the test case verdict present in your draft.

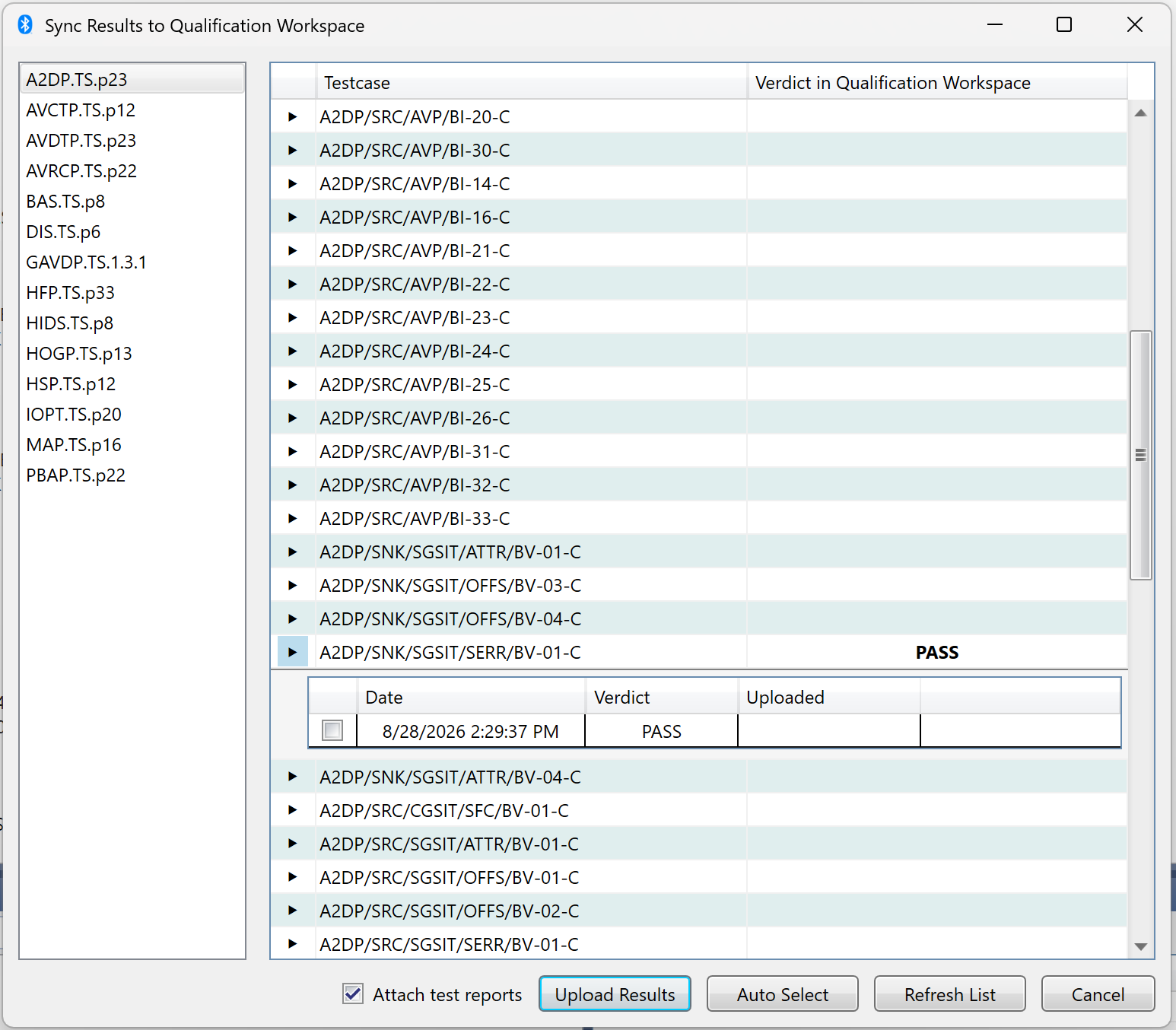

Sync Results view in PTS displaying the test case verdict as recorded in the Qualification Workspace draft. — The Sync Results view showing the test case verdict recorded in the draft.

Step 6. Verify the upload

In Qualification Workspace, open your draft and navigate to the Test Plan and Documentation step. In the Documentation section, the test report uploaded from PTS is listed. You can also download the test plan and confirm that the verdict, date, and test report reference fields have been completed for the selected test cases.

Qualification Workspace Test Plan and Documentation step showing the uploaded PTS test report and completed verdict fields. — The Test Plan and Documentation step showing the uploaded PTS test report and completed verdict fields.

What happens next

Your synced results and reports are stored with your Qualification Workspace draft. Continue completing additional test cases in PTS and syncing them as needed until your draft is ready for the next step in the qualification process.

Frequently asked questions

The following accordions answer common questions about the PTS and Qualification Workspace integration.

Which version of PTS do I need?

You need the latest version of PTS (v8.14.1), available from the Bluetooth PTS download page.

Do I have to upload test reports along with the results?

Uploading reports during testing is optional. However, test reports are required before submitting a qualification in Qualification Workspace. Select the Attach test reports checkbox in the Sync to Qualification Workspace window to include them.

Where can I learn more about PTS testing in general?

See the Profile Tuning Suite knowledge base (opens in a new tab) for additional PTS testing guidance.

Still need help

If you have questions about the PTS and Qualification Workspace integration, contact Bluetooth SIG support by submitting a support request (opens in a new tab).

This KBA is intended to provide Bluetooth SIG members with helpful information and address frequently asked questions. Governing documents, membership agreements, policies, and other Bluetooth SIG rules and guidelines can be found on the Bluetooth SIG governing documents page (opens in a new tab).
